| 4 Port PoE Injector 4CH PoE Power Adapter Ethernet Power Supply Pin 4,5(+)/7,8(-) Input DC12V-DC48V for IP Camera |
The best product you are looking for is "4 Port PoE Injector 4CH PoE Power Adapter Ethernet Power Supply Pin 4,5(+)/7,8(-) Input DC12V-DC48V for IP Camera". This product is available and ready to be purchased. Get attractive discounts every time you shop in our store (aliexpress.com). Aliexpress also provides a coupon of $ 3 for the first buyer to shop there. don't forget to bookmark our store page so you can go shopping again anytime..
| Name | Details |
|---|---|
| Buy now just | |
| Discount | 10 |
| Product id | 32829191447 |
| Vendor | TREEYE Official Store |
| Category | Security & Protection - Video Surveillance |
Buy Now On Aliexpress
Description :
Important Tips Before Purchase: This Non standard passive PoE injector is a simple and convenient equipment for PoE or Non PoE devices via an Ethernet cable. This PoE injector is compatible with IEEE802.3af/at network devices. it does not have auto detection function and directly supply power to the network devices by force as soon as you connect them, powered device or poe splitter must conform to standard IEEE 802.3af/at, the same time your powered device must support poe pin 4/5(+), 7/8(-) midspan. Power Input = Power Output*channels Take 4Port POE injector as example: DC48V 4A Input = DC12 V1A Output per channel, DC48V 2A Input = DC48V 0.5A output per channel. If you only use 3 of 4 channels, DC12V3 A input = DC12V 1A output per channel. Please select according your device power consumption, in order to ensure stable running, the total power consumption must be lower than the total power supply. This POE adapter apply for IEEE802.3af/at standard POE powered devices like DAHUA, HIKVISION and other brands IP cameras, or being equipped together with IEEE802.3af/802.3at standard poe splitter for non POE devices. This poe injector should be equipped with a power supply, this package does not include power supply, if you do not have it, you need to purchase per your need.
Main Specifications:
1) Voltage: DC12V-48V(upto 10A)
3) Led: Indicate the working state
4) Power pin: 4&5(+), 7&8(-); Data pin: 1236
5) Lan port: 8ports in RJ45(data in), 8port poe RJ45(data&power out)
6) Lan environment: 10/100Mbps Base-T, Ethernet cable: TIA/EIA 568 Cat.5 or Cat.5e
7) Data in: PC/Hub/Switch/Router, etc.
8) Working temp: 0~+40°C
9) Working humidity: 20 ~90% RH non-condensing
10) Storage temp & humidity: -20~+85°C, 10~95% RH

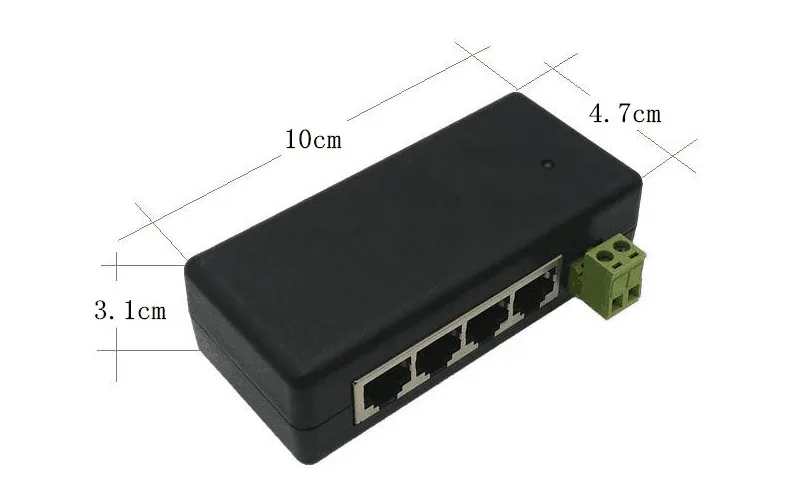

11) Size: 10cm*4.7cm*3.1cm, weight:120g
12) Tip: power voltage should not be over DC48V
4Ports PoE Injector 10/100Mbps Ethernet Power Adapter Power Supply for IP Cameras
